7 Best Car Battery Testers UK 2026

Picture this: it’s a freezing January morning in Manchester, you’re running late for work, and your car won’t start. Sound familiar? Battery failure accounts for approximately 50% of all vehicle breakdowns in the UK, yet most drivers never test their batteries until it’s too late.

A car battery tester is your first line of defence against unexpected breakdowns. Unlike the old-fashioned “wait until it dies” approach, modern battery analysers give you accurate readings of your battery’s state of health (SOH), cold cranking amps (CCA), and charging system performance—all before you’re stranded on the M25.

Whether you’re a weekend DIY mechanic maintaining your family saloon or a professional technician servicing a fleet of vehicles, choosing the right battery tester can save you hundreds of pounds in unnecessary replacements and costly roadside assistance calls. With prices ranging from under £20 for basic models to over £400 for professional-grade analysers, there’s a solution for every budget and requirement.

In this comprehensive guide, we’ll examine seven top-rated car battery testers available on Amazon.co.uk in 2026, covering everything from budget-friendly options to professional workshop tools. All prices are shown in GBP and reflect current UK availability.

Quick Comparison Table

💬 Just one click – help others make better buying decisions too! 😊

✨ Don’t Miss These Exclusive Deals!

🔍 Take your vehicle maintenance to the next level with these carefully selected products. Click on any highlighted item to check current pricing and availability on Amazon.co.uk. These tools will help you create authentic diagnostics your mechanic will appreciate!

Top 7 Car Battery Testers: Expert Analysis

1. TOPDON BT100 – Best Overall for UK DIYers

The TOPDON BT100 consistently tops our list as the best all-round car battery tester for British motorists. With over 2,900 verified reviews on Amazon.co.uk and a 4.7-star rating, it’s proven its worth in garages across the UK.

Key Specifications:

• Testing range: 100-2000 CCA for all 12V lead-acid batteries

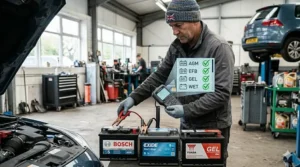

• Compatible with regular flooded, AGM, spiral-AGM, GEL, and EFB batteries
• 2-inch backlit LCD display with tri-colour LED indicators

UK Price Range: £45.48–£56.99

UK customers particularly appreciate the BT100’s performance in cold weather conditions. One reviewer from Scotland noted the device accurately tested his battery at -5°C, providing reliable readings when other testers failed. The tri-colour LED system (green for good, yellow for recharge, red for replace) makes interpretation straightforward even for novices.

Pros:

✅ Compact enough to store in your glove box
✅ Works in extreme UK temperatures (-20°C to 65°C)
✅ Supports all major battery standards (CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB)

Cons:

❌ No carrying case included
❌ Limited to 12V systems only

The device excels at both battery health testing and alternator diagnostics, making it ideal for identifying whether a slow start is due to a failing battery or charging system issues—a common dilemma for UK drivers during winter months.

2. TOPDON BT200 – Best for 12V & 24V Vehicles

For those managing both cars and commercial vehicles, the TOPDON BT200 offers exceptional value with its dual-voltage capability. This tester handles everything from your family hatchback to your work van or motorhome.

Key Specifications:

• Dual voltage: 12V and 24V testing
• 2.4-inch colour LCD display
• Complete system testing: battery, cranking, charging

UK Price Range: £65-£85

With 2,394 customer reviews averaging 4.6 stars on Amazon.co.uk, the BT200 has proven particularly popular with tradespeople and small fleet operators. The larger colour display provides more detailed information than the BT100, including voltage graphs and internal resistance measurements.

Pros:

✅ Tests 24V systems for trucks and buses
✅ Superior display clarity in bright daylight
✅ Stores last test result for comparison

Cons:

❌ Slightly bulkier than basic models
❌ Higher price point

UK delivery drivers and courier companies frequently choose this model for its ability to test both their personal vehicles and commercial fleet batteries with a single device, eliminating the need for multiple testers.

3. ANCEL BA101 – Best Budget Professional Choice

Don’t let the sub-£50 price fool you—the ANCEL BA101 delivers professional-grade accuracy at a fraction of the cost of premium models. Featured in multiple Project Farm YouTube reviews, it’s gained a reputation for punching well above its weight.

Key Specifications:

• 99.6% accuracy with copper crocodile clips
• USB connectivity for computer printing
• Temperature compensation for accurate readings

UK Price Range: £35-£50

The ANCEL BA101 stands out for its high-quality copper clamps, which provide superior electrical contact compared to cheaper aluminium alternatives found on budget testers. This translates to more consistent readings, particularly important in the UK’s damp climate where corrosion is common.

Pros:

✅ Exceptional value for money
✅ USB print capability for customer reports
✅ Supports deep cycle and marine batteries

Cons:

❌ Requires inputting battery specifications manually
❌ Non-backlit screen harder to read in dim conditions

Mobile mechanics across the UK favour this model for its portability and professional features. The ability to print test results via USB proves invaluable when documenting battery condition for insurance claims or warranty disputes.

4. FOXWELL BT705 – Best for Professional Workshops

The FOXWELL BT705 represents the professional tier of battery testing, offering laboratory-grade accuracy and durability that justifies its premium price. With 14+ years of automotive diagnostic experience, FOXWELL has engineered this tester to withstand the demands of busy UK workshops.

Key Specifications:

• 99.9% accuracy with advanced conductance technology
• 2.8-inch colour LCD (larger than most competitors)
• 5.9-foot cable for easier solo testing

UK Price Range: £120-£160

Recommended by Project Farm’s rigorous testing methodology, the BT705 delivers consistent results even in freezing temperatures below 0°F—crucial for UK workshops operating in unheated garages during winter. The extended cable length proves particularly useful when testing batteries in larger vehicles or those with awkwardly positioned batteries.

Pros:

✅ Professional-grade accuracy (99.9%)
✅ Robust construction with protective case
✅ Performs reliably in extreme cold

Cons:

❌ Higher price point
❌ Stores only last test result

MOT testing stations and independent garages across England and Wales rely on the BT705 for its dependable performance and ability to test heavy-duty 24V systems found in commercial vehicles and agricultural machinery.

5. MOTOPOWER MP0515A – Best Ultra-Budget Option

At under £30, the MOTOPOWER MP0515A proves you don’t need to spend a fortune to get basic battery diagnostics. With its distinctive black rubber coating and simple LED interface, it’s the perfect entry-level tester for occasional use.

Key Specifications:

• Simple three-LED display system
• Reverse polarity and overvoltage protection
• Digital voltage readout to two decimal places

UK Price Range: £20-£30

This tester’s rubber-painted exterior provides a secure grip—particularly appreciated by UK users working in cold, damp garages where metal tools can become uncomfortably cold. The straightforward LED system (green, yellow, red) eliminates the learning curve, making it ideal for first-time users.

Pros:

✅ Extremely affordable
✅ No-fuss operation
✅ Robust rubber coating for durability

Cons:

❌ Basic features only
❌ Limited diagnostic information

Perfect for keeping in your boot for emergency checks, the MOTOPOWER tester provides quick yes/no answers about battery and alternator health without overwhelming users with technical data they may not understand.

6. CTEK Battery Analyser – Best for Safety-Conscious Users

Swedish manufacturer CTEK brings its renowned smart charger technology to battery testing with this analyser. Priced between £80-£110, it emphasises safety with patented testing technology that generates no heat or sparks—a significant advantage in professional environments.

Key Specifications:

• Tests without load (no heat or sparks)
• Voltage range: 8-15V
• Test range: 200-1200 EN

UK Price Range: £80-£110

The CTEK analyser uses conductance testing rather than traditional carbon pile methods, meaning it can safely test batteries without disconnecting them from the vehicle. This proves particularly valuable for modern cars with complex electronic systems that may lose settings when the battery is disconnected.

According to Battery University, conductance testing has become the industry standard for safety and accuracy, making the CTEK a forward-thinking choice.

Pros:

✅ Spark-free operation for maximum safety
✅ No need to disconnect battery
✅ Compatible with all 12V lead-acid types

Cons:

❌ EN rating may confuse those expecting CCA
❌ Requires conversion table for SAE standards

UK garages appreciate CTEK’s reputation for quality and the analyser’s ability to test batteries while still installed, saving valuable workshop time.

7. KINGBOLEN BM550 PLUS – Best for Multi-Voltage Testing

The KINGBOLEN BM550 PLUS distinguishes itself with triple voltage capability (6V/12V/24V), making it the most versatile tester in our roundup. Priced at £55-£75, it bridges the gap between budget and professional models.

Key Specifications:

• Triple voltage: 6V, 12V, and 24V testing
• Real-time voltage waveform display
• Enhanced circuit design for accuracy

UK Price Range: £55-£75

Classic car enthusiasts particularly value the 6V capability, as many vintage British vehicles still use 6V electrical systems. The waveform display function allows advanced users to identify subtle charging system issues that simpler testers might miss.

Pros:

✅ Tests 6V systems (rare in competitors)
✅ Advanced waveform analysis
✅ Excellent build quality

Cons:

❌ Steeper learning curve for basic users
❌ Bulkier than single-voltage testers

UK classic car clubs recommend the BM550 PLUS for its ability to service both modern and vintage vehicles, eliminating the need to maintain separate testing equipment.

Understanding Cold Cranking Amps (CCA) in the UK Context

Cold cranking amps measure a battery’s ability to start your engine in freezing conditions—specifically, the number of amps a 12V battery can deliver at -18°C for 30 seconds whilst maintaining at least 7.2 volts. This standardised test, defined by the Society of Automotive Engineers (SAE), provides crucial information for UK drivers facing harsh winter conditions.

Why CCA Matters for British Motorists

The UK’s winter temperatures, whilst not as extreme as Scandinavia or Canada, still regularly drop below freezing across Scotland, Northern England, and rural Wales. When temperatures plummet, chemical reactions inside batteries slow dramatically, reducing available power just when your engine needs more current to turn over thick, cold oil.

According to research from Yuasa UK, battery performance drops significantly with temperature. A battery rated at 600 CCA might only deliver 300-400 amps in severe cold—potentially insufficient for larger diesel engines common in British SUVs and commercial vehicles.

CCA vs EN Ratings

UK batteries often display EN (European Norm) ratings alongside or instead of CCA values. Whilst both measure cranking power, they’re not directly equivalent. A 760 EN battery doesn’t equal a 760 CCA battery—the EN test uses slightly different parameters. When replacing your battery, always match or exceed the original specification using the same rating system.

Choosing the Right CCA for Your Vehicle

Petrol engines: Typically require 400-600 CCA
Diesel engines: Generally need 600-1000 CCA due to higher compression
Start-stop systems: Benefit from higher CCA ratings
Classic vehicles: May use different standards entirely

Most car battery testers measure actual CCA performance, allowing you to determine whether your battery still meets manufacturer specifications. If your battery tests at 70% or less of its rated CCA, replacement is advisable—particularly before winter.

How to Choose the Right Battery Tester for Your Needs

For Occasional Home Use

If you simply want to check your family car’s battery health twice yearly, a basic model like the MOTOPOWER MP0515A (£20-£30) provides adequate functionality. Look for:

• Simple LED or LCD display
• Reverse polarity protection
• Lightweight, portable design
• No external power required

For DIY Enthusiasts

Regular home mechanics benefit from mid-range models such as the TOPDON BT100 (£45-£57) offering:

• Cranking and charging system tests
• Multiple battery type compatibility
• Clear digital displays
• Ability to test off-vehicle

For Professional Mechanics

Workshop environments demand accuracy and durability. Professional-grade testers like the FOXWELL BT705 (£120-£160) justify their cost through:

• 99.9% accuracy ratings
• Heavy-duty construction
• Extended warranties
• Printable reports for customers

For Fleet Operators

Managing multiple vehicles, especially mixed 12V/24V fleets, necessitates versatile testers such as the TOPDON BT200 (£65-£85):

• Dual voltage capability
• Data storage for trend analysis
• Robust enough for daily use
• Cost-effective per-vehicle testing

Battery Testing Best Practices in the UK

Preparation for Accurate Results

Ensure proper conditions:
Test batteries at room temperature when possible. Extreme cold artificially depresses readings whilst heat can mask failing batteries.

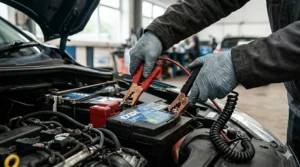

Clean terminals thoroughly:
UK weather promotes corrosion. Wire-brush terminals and clamps before testing to ensure good electrical contact.

Charge batteries above 70% SOC:
Most testers require batteries to be at least partially charged for accurate CCA readings. If voltage reads below 12.4V, charge the battery first.

Seasonal Testing Recommendations

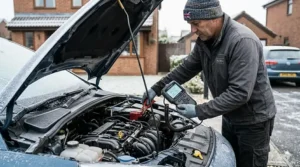

Autumn (September-November):
Test all vehicles before winter. Replace marginal batteries proactively rather than waiting for Christmas morning failures.

Spring (March-May):
Assess winter damage. Batteries stressed by repeated cold starts may need replacement despite surviving winter.

Before MOT:
A failing battery can cause MOT failures due to weak headlights or intermittent electrical faults.

Understanding Test Results

Modern testers provide multiple metrics beyond simple pass/fail:

State of Health (SOH):
Indicates battery condition as a percentage. Below 80% suggests replacement within 6-12 months.

State of Charge (SOC):
Shows current charge level. A fully charged 12V battery should read 12.6-12.8V.

Internal Resistance:
Rising resistance indicates deteriorating battery condition. Measured in milliohms (mΩ).

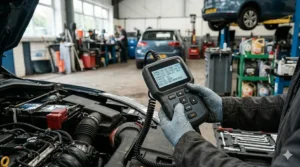

Cranking Test:
Measures actual starting voltage. Should remain above 9.6V during cranking.

Charging Test:
Verifies alternator output. Should read 13.8-14.4V with engine running.

Common Battery Problems UK Drivers Face

Parasitic Drain

Modern vehicles with alarm systems, dash cams, and GPS trackers consume power even when parked. UK drivers leaving vehicles unused for weeks during lockdowns or holidays often return to flat batteries. A battery tester can identify weak batteries vulnerable to parasitic drain.

Short Journey Syndrome

British commuters averaging 20-minute journeys rarely fully recharge their batteries. The alternator needs 30-40 minutes to replace energy used during starting. Regular testing identifies batteries degraded by chronic undercharging.

Age-Related Failure

UK batteries typically last 3-5 years. Coastal areas with salt-air exposure see reduced lifespans. Testing annually after three years prevents unexpected failures.

Cold Weather Impact

January and February see battery failure rates spike across the UK. Testing in October allows proactive replacement before the coldest months.

Alternator Testing: The Often-Overlooked Component

Many UK drivers mistakenly replace batteries when the real culprit is a failing alternator. Quality battery testers include charging system analysis, potentially saving hundreds of pounds on unnecessary battery purchases.

Signs Your Alternator Needs Testing

• Dashboard battery warning light illuminated
• Dimming headlights when idling
• Electrical accessories operating sluggishly
• New battery failing within months
• Unusual noises from engine bay

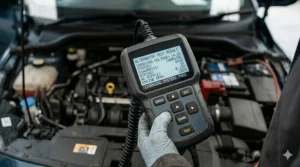

What Charging Tests Reveal

Normal readings:
13.8-14.4V with engine running at 2000 RPM

Undercharging (<13.5V):
Failing alternator or loose drive belt

Overcharging (>14.8V):
Faulty voltage regulator potentially damaging battery

High ripple voltage:
Failing diodes in alternator rectifier

According to Battery University, identifying charging system faults early prevents secondary damage to batteries and sensitive electronics.

Battery Tester Maintenance and Calibration

Keeping Your Tester Accurate

Clean clamps regularly:
Corrosion on test leads affects accuracy. Wire-brush copper clamps monthly if used frequently.

Store properly:
Keep testers in dry conditions. UK garages’ damp environments can damage electronic components.

Check firmware updates:
Some advanced models offer software updates improving accuracy and adding vehicle profiles.

Verify calibration:
Test a known-good battery periodically to confirm accurate readings.

When to Replace Your Tester

Battery testers don’t last forever. Replace if:

• Results vary wildly between repeat tests
• Display becomes dim or unreadable
• Physical damage to cables or clamps
• Unit fails to power on reliably

Most quality testers last 5-10 years with proper care, though professional workshop tools may see shorter lifespans due to intensive daily use.

Frequently Asked Questions

Conclusion: Choose Your Car Battery Tester Wisely

Investing in a quality car battery tester ranks amongst the smartest purchases any UK motorist can make. Whether you opt for the budget-friendly MOTOPOWER MP0515A at under £30 or the professional-grade FOXWELL BT705 at £120-£160, you’re buying peace of mind and potential savings far exceeding the initial cost.

Our top recommendation for most UK drivers remains the TOPDON BT100—it strikes the perfect balance between features, accuracy, and affordability. At £45-£57, it delivers professional-grade diagnostics without breaking the bank, whilst its compact size and intuitive interface make it accessible to beginners and experienced mechanics alike.

For those managing commercial fleets or frequently testing 24V systems, the TOPDON BT200 justifies its higher price through versatility and enhanced features. Classic car enthusiasts should seriously consider the KINGBOLEN BM550 PLUS for its rare 6V testing capability.

Remember: a £50 battery tester can prevent a £150 roadside recovery call and potentially save your £100+ battery from premature replacement. In the unpredictable British climate, that’s a bargain by any measure.

Don’t wait for a freezing Yorkshire morning or a rainy Scottish evening to discover your battery’s on its last legs. Test proactively, replace strategically, and drive confidently knowing your vehicle will start when you need it most.
